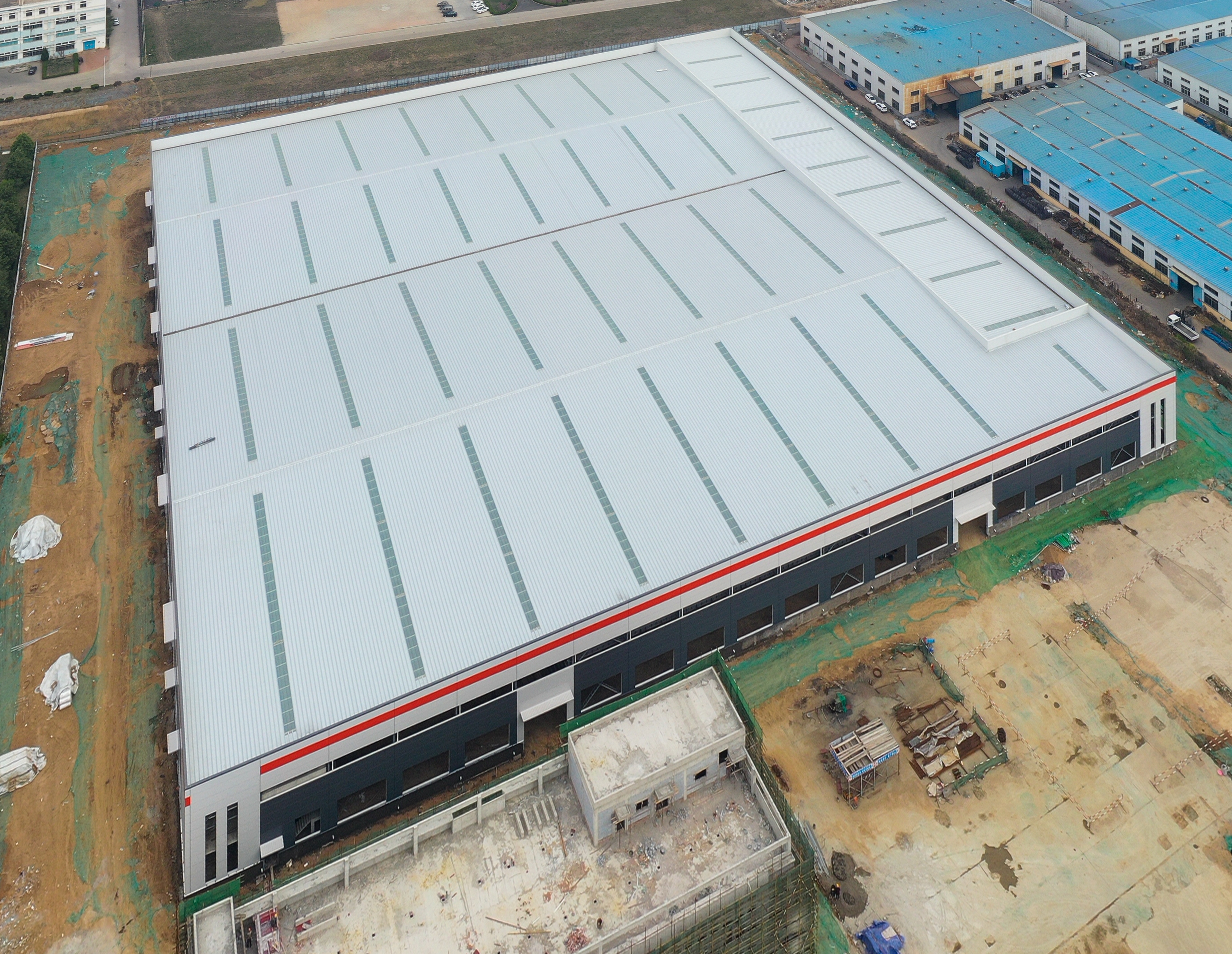

Steel Warehouse mainly refers to the main load-bearing components are composed of steel. Including steel columns, steel beams, steel structure foundation, steel roof truss (of course, the span of the plant is relatively large, and it is basically steel structure roof truss now), steel roof, pay attention to the wall of steel structure can also use brick wall maintenance.
| Quantity: | |
|---|---|
1.Production introduction of Prefab High Quality Steel Warehouse Workshop Construction Buildings
Steel Frame Structure Building is a new type of light steel structure building system formed from a main steel framework comprised of H section, Z section and U section steel components, the roof and walls utilizing a variety of panels and other components such as windows, doors, and cranes.
2.Specification of Prefab High Quality Steel Warehouse Workshop Construction Buildings
| Items | Specification | |
| Main Steel Frame | Column | Q235, Q345 Welded H Section Steel |
| Beam | Q235, Q345 Welded H Section Steel | |
| Secondary Frame | Purlin | Q235 C and Z purlin |
| Knee brace | Q235 Angle Steel | |
| Tie Rod | Q235 Circular Steel Pipe | |
| Brace | Q235 Round Bar | |
| Vertical and Horizontal Support | Q235 Angle Steel, Round Bar or Steel Pipe | |
| Maintenance system | Roof Panel | EPS Sandwich Panel /Glass Fiber Sandwich Panel / Rock Wool Sandwich Panel / Pu Sandwich Panel /Steel Sheet |
| Wall Panel | Sandwich Panel / Corrugated Steel Sheet | |
| Accessories | Window | Aluminum Alloy Window / PVC Window / Sandwich Panel Window |
| Door | Sliding Sandwich Panel Door / Rolling Metal Door / Personal Door | |
| Rain spout | PVC | |
| Live load on Roof | In 120kg/Sqm (Color steel panel surrounded) | |
| Wind Resistance Grade | 12 Grades | |
| Earthquake-resistance | 8 Grades | |
| Structure Usage | Up to 50 years | |
| Temperature | Suitable temperature.-50°C~+50°C | |
| Certification | CE, SGS,ISO9001:2008,ISO14001:2004 | |
3.Product feature and application for Prefab High Quality Steel Warehouse Workshop Construction Buildings
a.Fast assembled steel construction, easy installation, quickly finished.high strength, stable..
b. It can be recycled.environmental protection, maintenance earthquake, water proofing, energy conserving.
c. It can be workshop and customize design
d. Steel structure construction is light weight, high strength, large span and can improve higher space efficiency.;
c. H section is welded by automatic streamline at the plant, is connected at site by high strength bolts.
4.Product details of Prefab High Quality Steel Warehouse Workshop Construction Buildings
5.Product Certification of Prefab High Quality Steel Warehouse Workshop Construction Buildings
6.Delivery, shipping and service for Prefab High Quality Steel Warehouse Workshop Construction Buildings
1.Shipped in 30 days after drawing confirmed, packed with steel pallets and loading into shipping container.
2.We reply each inquiry within 24 hours
a.Develop and make new parts according to customers' requirements and detailed information.
b.Provide service of designing, engineering, manufacturing and installation.
c.Our expert technicians can help you to assemble the project at site.
d.If you need ,we can provide you guide construction installation abroad for modern design aircraft steel hangar. We have a professional installation team.
7.Company Information:
Main products : industrial door and window, steel structure building ( including chicken farm , warehouse , workshop , hangar , garage and so on ) . prefab house , container house .
Staff : 100 engineers and 600 production workers .
Area : More than 24000 sqm .
Product Capacity : 1200 TON per mouth.
8.FAQ for design and quotation
Our excellent design team will design the Steel Structure Factory Shed for you. If you give the following information
a. Location (where will be built? ) _____country, area
b. Size: Length*width*height _____mm*_____mm*_____mm
c. wind load (max. Wind speed) _____kn/m2, _____km/h, _____m/s
d. snow load (max. Snow height)_____kn/m2, _____mm
e. anti-earthquake _____level
f. brick wall needed or not If yes, 1.2m high or 1.5m high
g. thermal insulation If yes, EPS, fiberglass wool, rock wool, PU sandwich panels will be suggested; If not, the metal steel sheets will be OK. The cost of the latter will be much lower than that of the former.
h. door quantity & size _____units, _____(width)mm*_____(height)mm
i. window quantity & size _____units, _____(width)mm*_____(height)mm
j crane needed or not If yes, _____units, max. Lifting weight____tons; Max. Lifting height _____m
