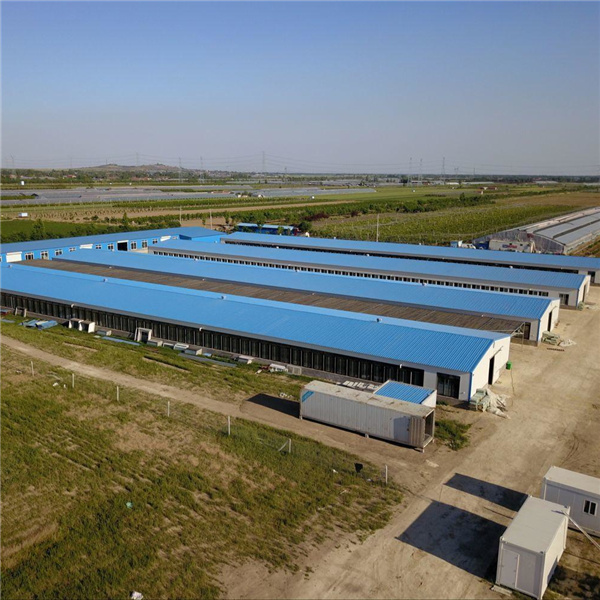

Galvanized Metal Structure Poultry Equipment Farm Layer Shed Building Housing is a new type poultry housing that built with steel structure house building and full automatic equipments.
| Quantity: | |
|---|---|
1.Production introduction of Galvanized Metal Structure Poultry Equipment Farm Layer Shed Building Housing
Nowadays the steel structures widely used in poultry house,it’s low cost to build and fast to install, although the poultry sheds or a chicken farm building may look the same,there is a world of difference in the detail and performance,for the controlled poultry house is a kind of light steel structure for the main framework which is composed of main feeding system, chain feeding system, nipple drinking system, ventilation system, and spraying system etc,it’s can create more comfortable environment for the poultry,so make a prefab steel structure poultry house is you first choice that you can feed the broiler, egg chicken, ducks ,quails ,turkey etc.
2.Specification of Galvanized Metal Structure Poultry Equipment Farm Layer Shed Building Housing
| Column and beam | material Q345B & Q235BH section steel ( painted or galvanized) or square tube |
| Wall&roof purlin | c or z section steel, size from c120~C320, z100~Z200 |
| Wall&roof panel | colorful corrugated steel sheet(or with insulation material) / eps, rock wool, fiber glass, pu Sandwich panels. |
| Supporting | steel angle, steel pipe, steel round. |
| Gutter | steel sheet or galvanized steel sheet |
| Rain spout | pvc pipe |
| Door | sliding door |
| Accessory | anchor bolt,high strengthen bolt, normal bolt, skylight panel, ventilators, etc. |
3.Main System of Galvanized Metal Structure Poultry Equipment Farm Layer Shed Building Housing
(1)Main Feeding System:
When feed fill up base hopper, then it is transferred to the feeders by delivery system. The base hopper with qualities of large capacity, scientific design,firm structure, low cost, and with long life span.
(2)Pan Feeding System
Feed pan is the core of feeding system. The pan feeding system for broilers is of high quality materials and components. of high quality materials and components. Easy access for birds from day one to grow out.
(3)Nipple Drinking System:
Nipple Drinking System providing flesh and clean water for birds,which is very vital to let the birds have a good growing performance.Meanwhile, nipple drinking system can make the poultry house system has been become the necessary equipment for stander poultry feeding.
(4)Ventilation system:
The fan translations have all passed the experiment of homeostasis, which makes the air volume keep the same at the very beginning during the operational lifespan.
(5)Cooling Pad System:
The cooling pad works in the condition of negative pressure, and is installed in the side wall or in the gable wall, and the fans are installed in the opposite side. The water film of recyclable water system is formed in the surface of the pad, when the air goes through the pad, the heat will be taken up by the water's evaporation.
(6)Environment control system:
Based on the windows 2000 of the automatic environmental Monitoring Network System of poultry house. You can easily achieve centralized monitoring of environmental conditions within a certain range.
4.Product feature and application for Galvanized Metal Structure Poultry Equipment Farm Layer Shed Building Housing
a.The full set of equipment using hot-dip galvanized material, corrosion-resistant, which ensures the service life of 15-20 years.
b.Intensive management and automated control. Achieve automatic feeding,drinking,manure cleaning,egg collecting and environment control,can help to improve working efficiency and save labor cost.
c.High-density raising,saves land and investment.
d.Suitable for closed chicken house. Automatic control of ventilation and temperature can meet the requirement of the birds.
5.Product details of Galvanized Metal Structure Poultry Equipment Farm Layer Shed Building Housing
6.Product Certification of Galvanized Metal Structure Poultry Equipment Farm Layer Shed Building Housing
7.Delivery, shipping and service for Galvanized Metal Structure Poultry Equipment Farm Layer Shed Building Housing
Shipped in 30 days after drawing confirmed, packed with steel pallets and loading into shipping container.
8.FAQ for design and quotation
Our excellent design team will design the Steel Framing or you. If you give the following information
a. Location (where will be built? ) _____country, area
b. How many chickens do you want to raise? Broiler or Layer?
c. Size: Length*width*height _____mm*_____mm*_____mm
d. wind load (max. Wind speed) _____kn/m2, _____km/h, _____m/s
e. snow load (max. Snow height)_____kn/m2, _____mm
f. anti-earthquake _____level
g. brick wall needed or not If yes, 1.2m high or 1.5m high
h. thermal insulation If yes, EPS, fiberglass wool, rock wool, PU sandwich panels will be suggested; If not, the metal steel sheets will be OK. The cost of the latter will be much lower than that of the former.
i. door quantity & size _____units, _____(width)mm*_____(height)mm
j. window quantity & size _____units, _____(width)mm*_____(height)mm
K. Do you need exhause fans, drop curtain and equipment?
